1. Project introduction
Beijing Yan Cultural Relics Flow Co., Ltd. is a well-known e-commerce logistics supply chain service enterprise in the industry, mainly engaged in international express express service and other businesses. In recent years, with the booming development of e- commerce, the international parcel handling volume increases rapidly, and during the annual Double 11, the business volume increases rapidly, he problems of warehouse bursting, express damage, and high sorting error rate also followed.
The sorting center in Yiwu, Kunshan and Shenzhen is mainly engaged in international business such as Europe, America, Singapore, and Hong Kong. There are a wide variety of express parcel materials, such as woven bags, cartons and PVC bags, etc. The size is generally small with the minimum weight 5g,the thickness 0.5mm and the maximum weight is 30kg. Based on this situation, GINFON adopts its own research and development according to the actual business needs GP-CBS series Cross tape sorter system, solved the problem efficiently and orderly, and met the needs of distribution centers in Yanwen. e.g.parcels from 5g to 50g can be sorted normally, with good efficiency, accuracy, flexibility and site utilization and other advantages, no matter the size of the goods, weight or material, can be smooth and soft sorting.
2. Application highlights

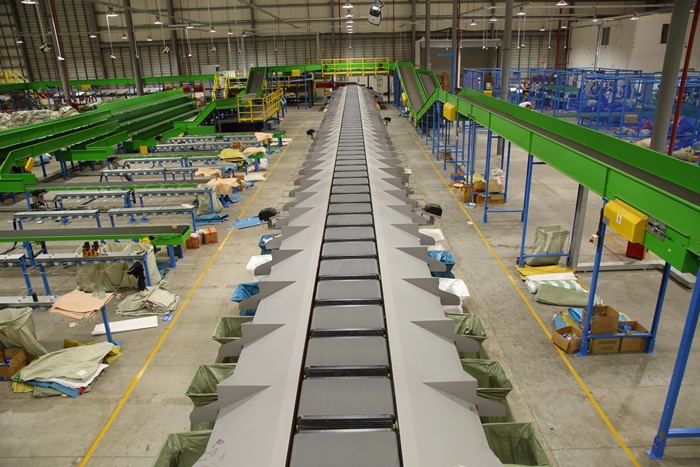

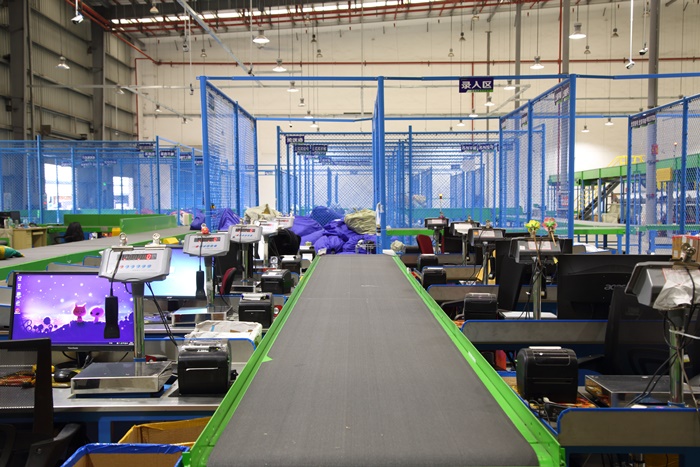

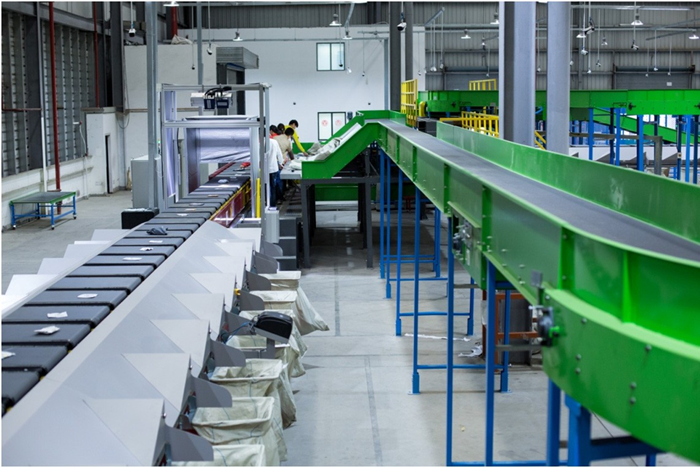

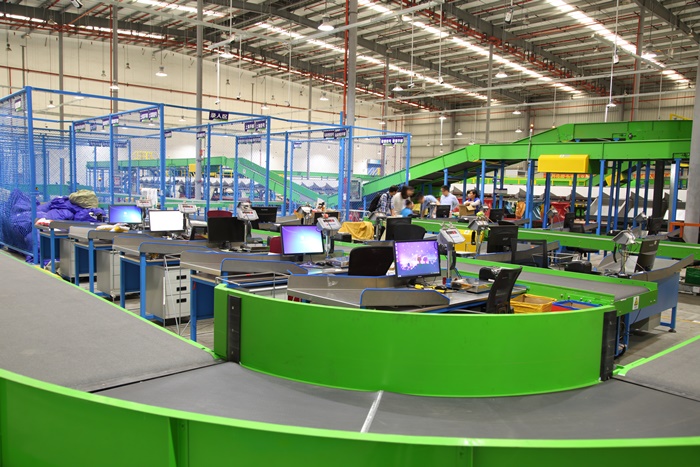

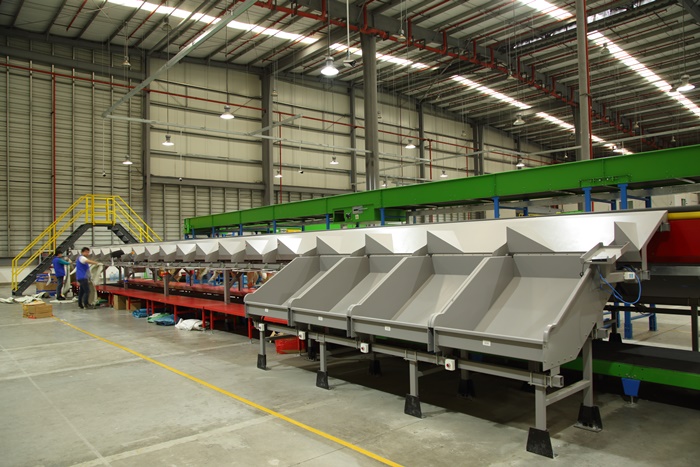

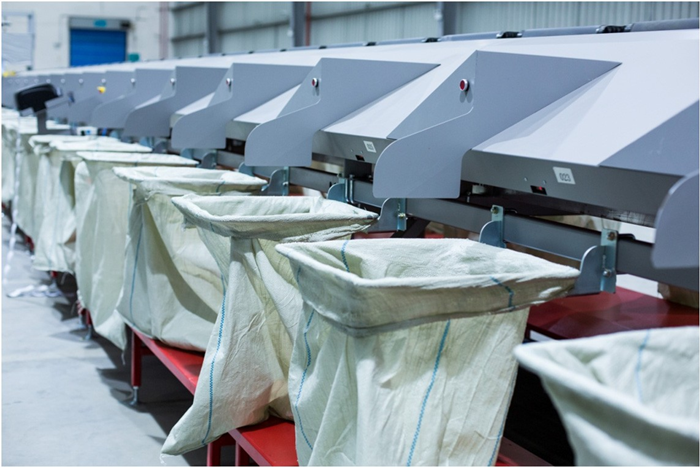

GINFON started to conduct research and overall planning and design of Yanwen Kunshan Sorting Center in July 2016. All sorting centers in Yanwen have centralized sorting, including express parcels collected from all over the country, and local customers deliver them to the corresponding venues by themselves. Sorting centers shall be set up separately into 2 large car delivery areas: retail delivery area and 2 outdoor loading parking space. According to the size of the sorting center, to configure the sorting machine parts system such as Kunshan sorting center, we adopt the manual loading mode of setting 5 working positions in each of 3 districts. Parcels to be sorted are sent to the unpacking area by automatic telescopic conveyors and various conveying systems. After unpacking, operators go to the check table for scanning code, weighing and changing sheet, and pour them into the chute for delivery to the induction. Then, operators at the delivery table put the parcels into the running cross-belt trolley and pay attention to placing barcode information on the surface for the convenience of subsequent scanning.
3. Cooperation products and time
Product line: Cross belt sorting system
4. The field effect
GINFON Company assisted Beijing Yanwen to design and build regional sorting centers in Yiwu, Kunshan, Shenzhen, etc. by analyzing the process handling capacity, operation characteristics, and other factors 4 sets of efficient, intelligent, flexible cross
belt automatic sorting system and the whole-process solution to the problems of increasing business volume, difficult labor, small site, quality control, and low efficiency. The average daily handling capacity increased from 20,000pcs/day before the project
construction to 80,000pcs/day now.
GINFON is a comprehensive solution provider and key core product manufacturer focusing on the logistics automation business in the field of intelligent logistics and intelligent manufacturing. It has independently developed a full series of intelligent, efficient and flexible sorting systems and warehousing automation systems, and has formed a complete series of sorting and warehousing products, providing customers at home and abroad with intelligent logistics automation system engineering solutions GINFON provides the whole process of project management implementation, management and other comprehensive services. Welcome to inquire, you can also consult online/Leave a message and communicate directly with customer service.
GINFON GF-CBS series cross-belt sorter system has the advantages of high efficiency, accuracy, flexibility and high utilization rate as a type of sorter solution with both economy and reliability. It can sort various kinds of goods weighing from 10g to35 kg, especially suitable for postal express, e-commerce and distribution centers (medicine, food, tobacco, cosmetics and clothes, etc.).
The system is a new type of high-speed sorting equipment and an upgraded version of the traditional horizontal circular conveying mechanism. The equipment consists of two circulating conveying mechanisms, the upper and lower, and a sorting trolley carryingasmall belt conveyor, which uses dual software and hardware responses to achieve fault warning and spare parts management.
The linear narrow-belt sorter system is mainly used in the e-commerce and express industry. It is an ultra-efficient linear sorting equipment that can solve various types of parcels, and has the advantages of high efficiency, precision, flexibility, intelligentand high space utilization rate. Shape of sorted items:Soft parcel, flat piece, sack, carton, abnormal parcel with stable center of gravity.
