Loop Cross-belt Sorter

GINFON GF-CBS series cross-belt sorter system has the advantages of high efficiency, accuracy, flexibility and high utilization rate as a type of sorter solution with both economy and reliability. It can sort various kinds of goods weighing from 10g to 35 kg, especially suitable for postal express, e-commerce and distribution centers (medicine, food, tobacco, cosmetics and clothes, etc.).

inquiry

Product details

Product characteristics

01.Wide application
Combined with the user's information system, it can realize sorting by batch or destination, and also form a comprehensive sorting mode of cross-interconnection and cross-docking operations.
02.Standard module
High standards of module standardization ensure fast and simple installation, and easy modification and expansion.
03.High efficiency and energy saving
Light and simple structural design, high sorting efficiency, energy saving and emission reduction.
04.Flexible layout
Flexible planning layout for sloping up or down section applications.
05.High accuracy
The high accuracy of feeding and unloading enables the use of dual density unloading or automatic bagging for packaging of goods.
06.High intactness rate
Not limited by the size, weight or material of the goods, to achieve smooth and soft sorting, to ensure high intactness rate of goods.
07.Easy to control
Powerful, friendly, simple control system to provide a high level of diagnostic functionality.
08.Lower noise
Low noise operation can be maintained even at maximum speed sorting.

Product display

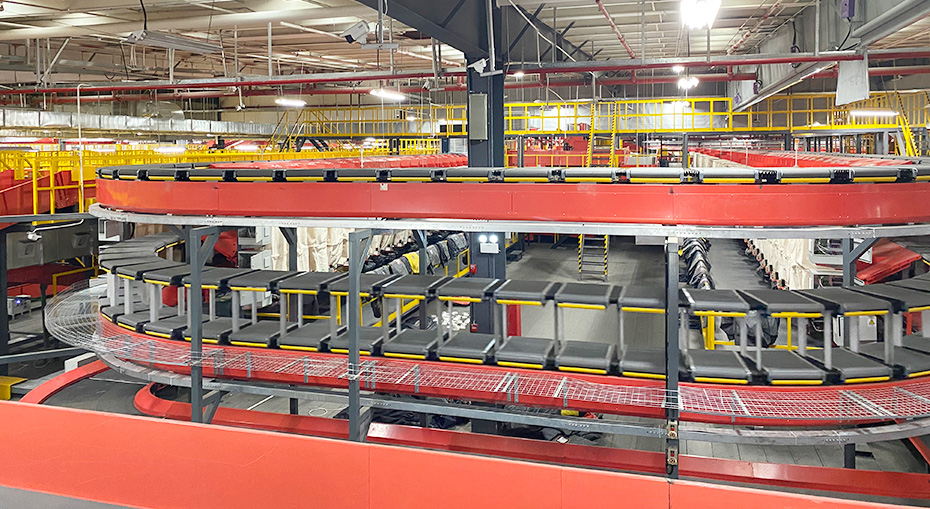

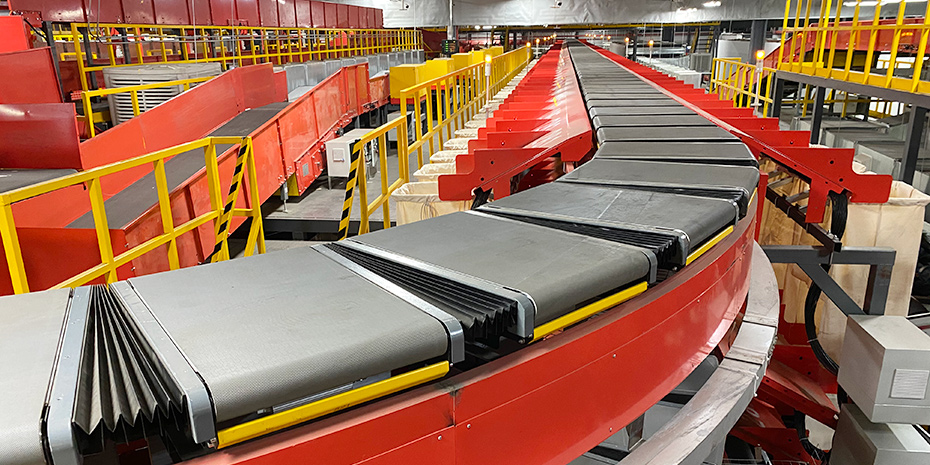

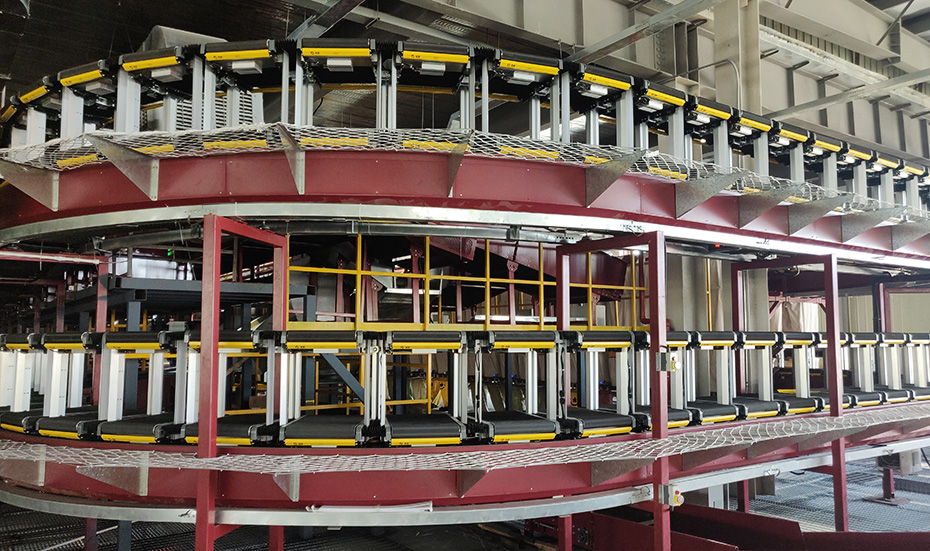

Ring cross tape sorter system

Product parameter

Cross belt sorter model	GF-CBS600 type
Cross belt sorter model	Single row single layer	Double row single layer	Single row double layer
Maximum sorting capacity (pieces/Hour)	15,000 PPH	30000 PPH	30,000 PPH
Maximum operating speed (m/Seconds)	2.5 m/s	2.5 m/s	2.5 m/s
Weight range of sorted goods	The most10g maximum35kilogram	The most10g maximum35kilogram	The most10g maximum35kilogram
Size range of sorted goods (mm)	minimum100Lx100Wx5H maximum600Lx400Wx400H	minimum100Lx100Wx5H maximum600Lx400Wx400H	minimum100Lx100Wx5H maximum600Lx400Wx400H
Carrier size (mm)	426x700	426x700	426x700
Trolley spacing (mm)	600	600	600
Drive system for carrier sorting (optional)	Electric roller or servomotor	Electric roller or servomotor	Electric roller or servomotor
Power supply for carrier sorting (optional)	Sliding touch (carbon brush) or Non-contact type (high frequency induction)	Sliding touch (carbon brush) or Non-contact type (high frequency induction)	Sliding touch (carbon brush) or Non-contact type (high frequency induction)
Drive system for carrier running on a loop line (optional)	Linear motor (electromagnetic drive)	Linear motor (electromagnetic drive)	Linear motor (electromagnetic drive)
Power supply for sorting on a loop line	DC 48volt	DC 48volt	DC 48volt
Sorting system noise level	≤70 decibel	≤70 decibel	≤70 decibel

Product patent

Type of patent	Patent name	Patent number
invent	A double-layer cross belt sorter	201510184464.7
	The utility model relates to a central control method for supply parts of a cross belt sorter	201510220552.8
	Cross tape sorter	201710094556.5
	Delivery method of cross belt loop sorting system	201710169695.X
	The control method and system of cross belt loop sorting system	201710170107.4
	The sorting method of cross belt loop sorting system and the next packet control system	201710169455.X
	Double-ring line cross-belt sorting machine, cross-belt sorting system and sorting method thereof	201811249683.9
	Friction driving device, cross belt sorting machine and cross belt sorting system	201811247583.2
Utility model	A double-layer cross belt sorter	201520232150.5
	A cross belt sorter	201520277223.2
	Cross tape sorter	201720153775.1
	Double-layer cross tape sorting line	201721140260.4
	Cross - belt sorter and space - intensive logistics sorting line	201821732603.0
	Longitudinal cross belt sorting machine and logistics sorting system	201821735963.6
	Double ring line cross belt sorting machine, cross belt sorting system	201821732552.1
	Friction driving device, cross belt sorting machine and cross belt sorting system	201821732555.5
