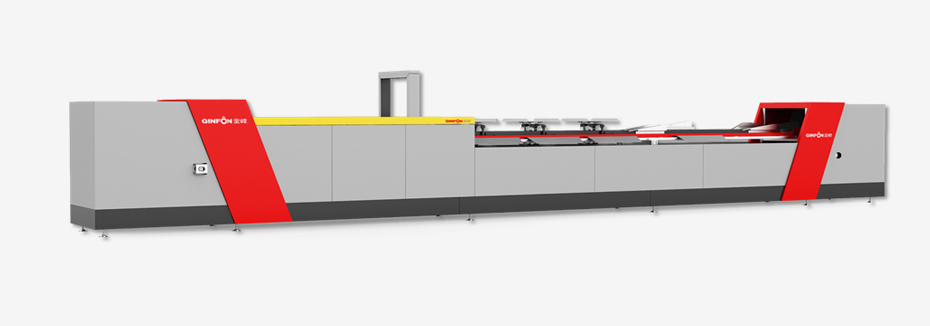

Linear Tilt-tray Sorter

Linear tilt-tray sorter is an automatic sorting system driven by motor with its carriers driven by chain for motion. The goods are loaded to the carrier by the personnel manually at the front end. When the goods reach the chute, the jacking mechanism driven by the electromagnet lifts the carrier for deflection by 35 degrees, so as to send the goods to the chute required.

Widely used in express second and third level franchisees, e-commerce warehousing, fresh distribution, cold chain logistics, books,3C and other industries.

inquiry

Product details

Product advantage

01Low noise, more comfortable
02Long-distance transportation, more economical
03Maintenance-free and flexible
04High sorting efficiency, good cargo applicability,
Suitable for books, clothing, all types of soft and hard packages
05Small footprint
Low land cost

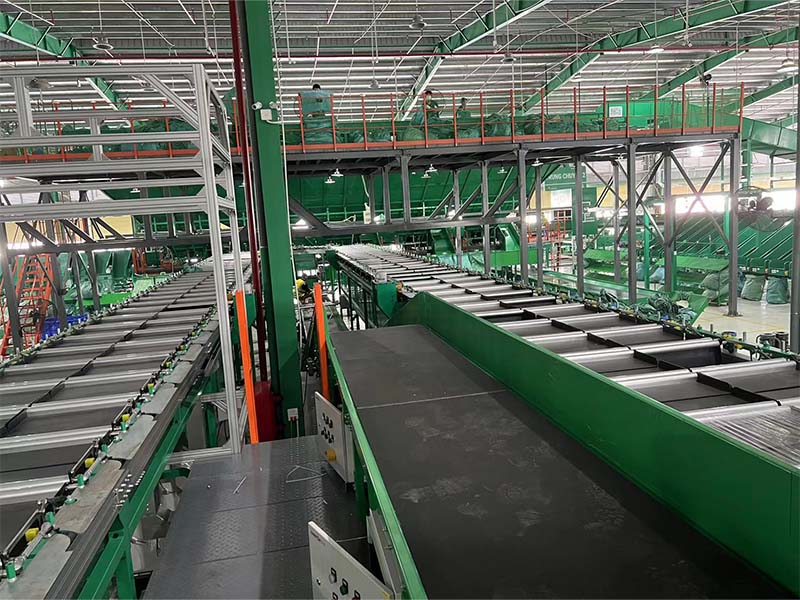

Product display

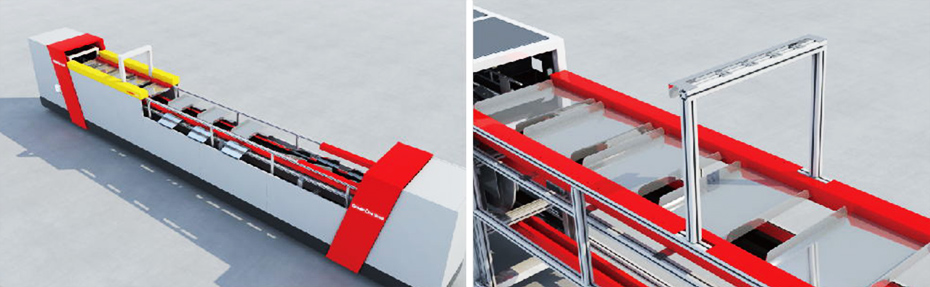

Straight line tipper

Product parameter

Linear velocity	45m/min	Summary car distance	381mm
Sorting capacity	7000a/hour	Tilt-tray pitch	381mm
Turning diameter	727.98mm	Size range of sorted goods	maximum350W450L200H mm minimum100W200L2H mm
Weight range of sorted goods	20g-5kg	Noise range	≤70dB
Chute width	≥700mm	Loop height	＞1220mm
Infeed mode	Manual supply package	Manual infeed	Mechanical reset
