Disk type deflector sorter system - Intelligent sorter

Roulette-Diverter Wheel Sorter System

Roulette-Diverter Wheel Sorter System is multi-section continuous deflection and the entire system can be divided into multi-segment deflection direction control (the number of segments can vary depending on the design). With modular design, it can beexpanded and changed as needed，making installation and maintenance convenient.

inquiry

Product details

Product characteristics

Roulette-Diverter Wheel Sorter System is multi-section continuous deflection and the entire system can be divided into multi-segment deflection direction control (the number of segments can vary depending on the design).
According to the information set by the control system, the package is sent to different branch lines through the set deflection wheel Angle.
Each device can normally be configured with 2-3 deflection directions.
Module standardization, convenient maintenance and expansion.
Can be customized according to the size of the site and business needs.

Product display

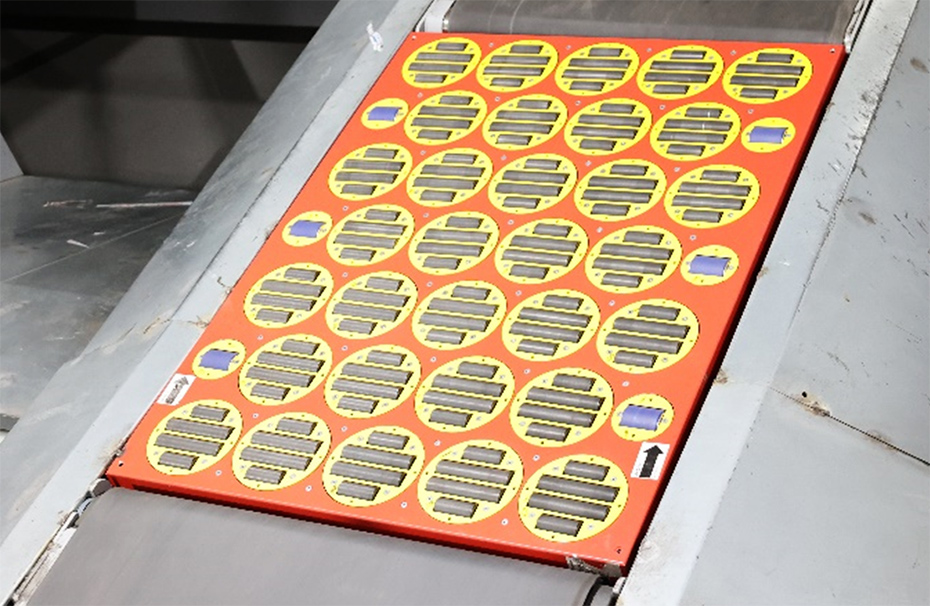

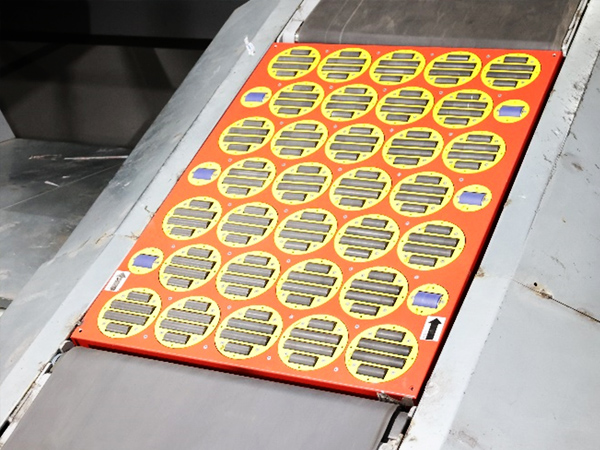

Disc type-Deflection wheel sorter system

Product parameter

Equipment specification	GF-ODS
Maximum sorting capacity (pieces/Hour)	6500 PPH(Note: Goods400mm×400mm)
Speed range (m/min)	80～120
Size range of parcel to be sorted (mm)	minimum L200×W200×H20 maximum L1200×W800×H700
Weight range of parcel to be sorted(kg)	0.1～30kg
Sort the way	Two-sided sorting
External dimensions of equipment units(mm)	L1180×W1060×H500(Based on 5 section)
Sorting direction(mm)	±50
Input mode	Manual input, automatic input
Power supply	Single item220V 50HzBelt ground
