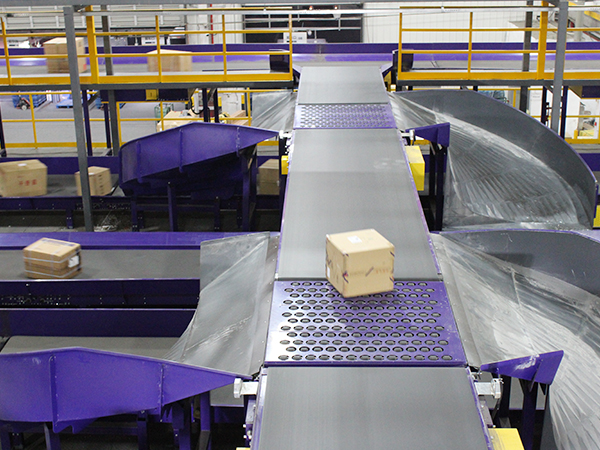

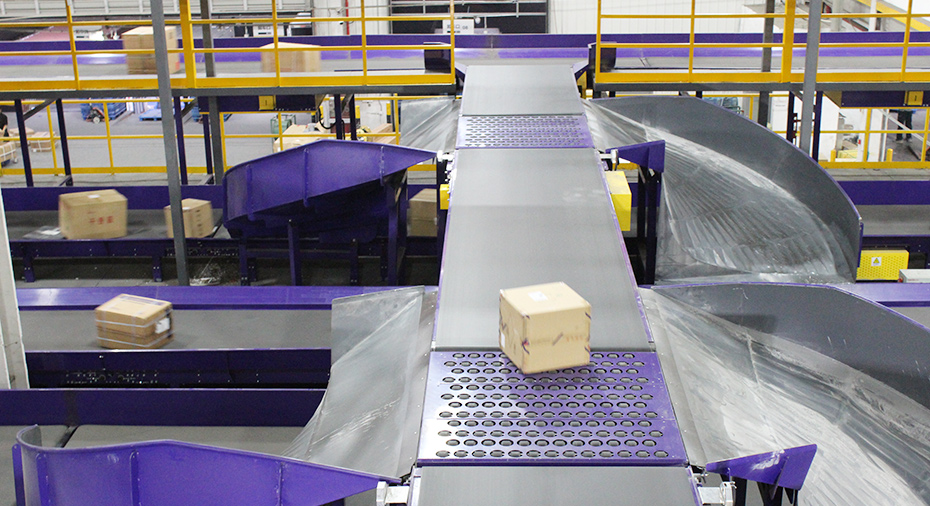

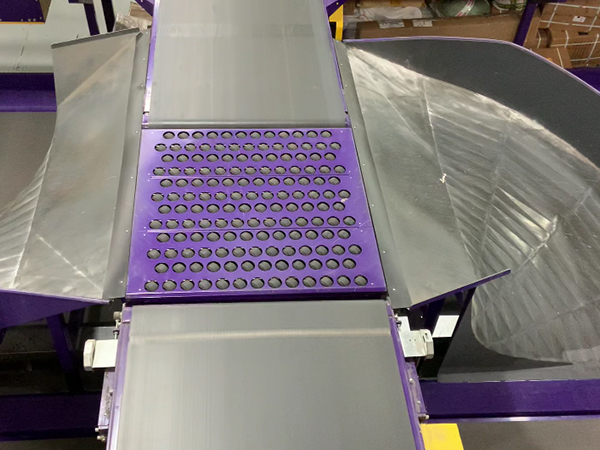

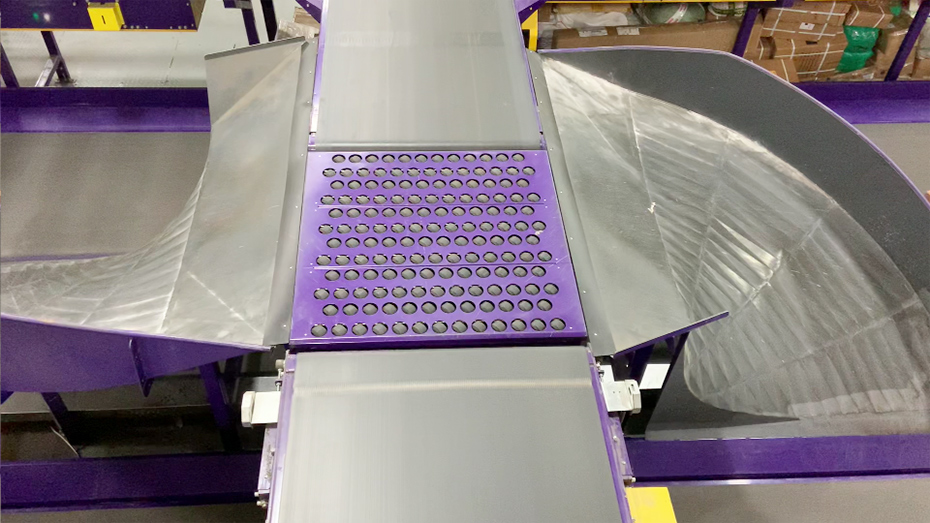

The friction sorter system is a multi-stage continuous deflection system, and the entire machine can be divided into multi-stage continuous deflection directions (the number of segments can vary depending on the design). Parcels are sent to differentbranch lines through setting deflection wheel angle, and each device can ach device can normally be configured with 2-3 deflection directions.
Shape of sorted items:Cartons, turnover boxes, file bags, express flat parts, etc.
| Equipment specification | GF-MCS(Friction type) |
| Maximum sorting capacity (pieces/Hour) | 10000 PPH(Note: Goods400mm×400mm) |
| Speed range (m/min) | 80～150 |
| Size range of parcel to be sorted(mm) |
minimum L200×W200×H10 maximum L1200×W800×H700 |
| Weight range of parcel to be sorted(kg) | 0.1～80 |
| Sorting direction | Two-sided sorting |
|
Overall dimensions of equipment |
L1240×W1060×H600(Customizable) |
| Height adjustable range(mm) | ±50 |
| Input mode | Manual input, automatic input |
| Power supply | Three phase380V 50HzBelt ground |
| Five-group configuration | Six-group configuration |
|
• Length:1040mm • Wheel set:10row • Range of goods:200*200*10-1200*800*700(mm) |
• Length:1240mm • Wheel set:12row • Range of goods:200*200*10-1200*800*700(mm) |
As the e-commerce and express deliveryindustries continue to expand at an unprecedented pace, the demand forefficient and reliable sorting systems has never been higher. GINFON GROUP isproud to introduce the Linear Narrow-belt Sorting System, a state-of-the-artsolution engineered to meet t......
