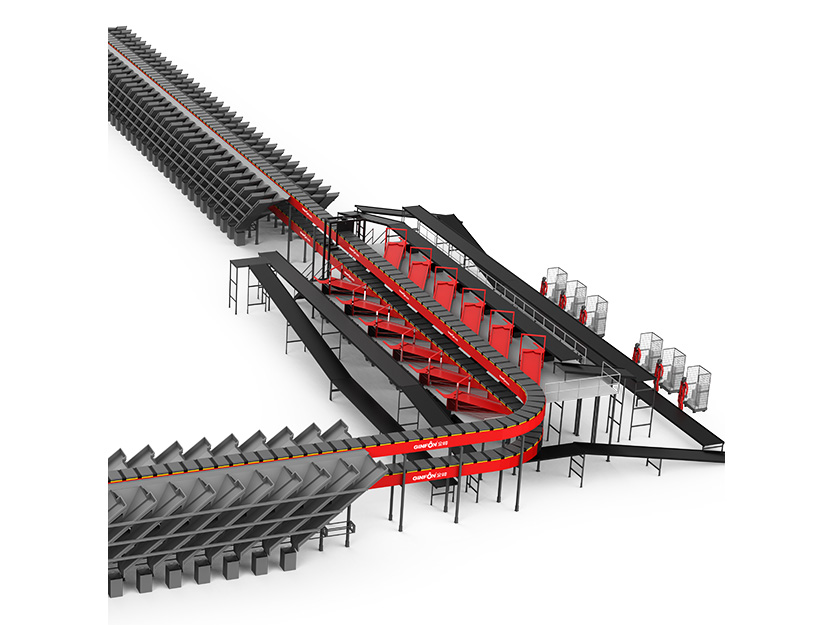

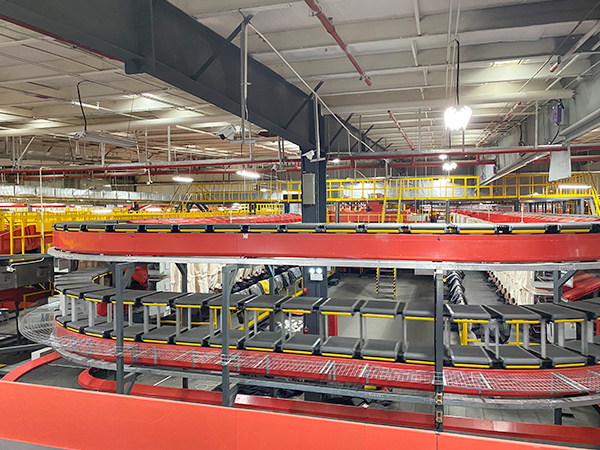

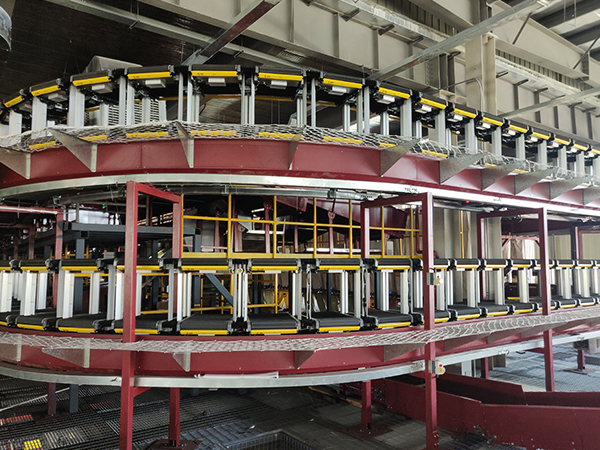

The whole category of cross - belt sorter is based on its transport container - cross - belt type NC . It's named after the pallet car. This kind of pallet car cancels the traditional way of relying on neutral unloading and also cancels the tray tipping mechanism. Instead, a short conveyor belt with baffle plate which can run bidirectional is installed on the fixed disk surface to realize the function of accepting packages and bidirectional unloading package into the grid.

inquiry
  • Product details
Product introduction

The whole category of cross - belt sorter is based on its transport container - cross - belt type NC It's named after the pallet car. This kind of pallet car cancels the traditional way of relying on neutral unloading and also cancels the tray tipping mechanism. Instead, a short conveyor belt with baffle plate which can run bidirectional is installed on the fixed disk surface to realize the function of accepting packages and bidirectional unloading package into the grid. It gets rid of the strict requirements of the traditional cross belt sorter on the shape of goods. The system has the advantages of excellent efficiency, accuracy, flexibility and site utilization. It is a sorting solution to achieve maximum economic effect and high reliability.

Product parameter
NC Cross tape type GF-CBS-500-NC GF-CBS-600-NC
Single zone maximum sorting capacity (PCS/Hour) 10800PPH 9000PPH
Maximum operating speed (m/Seconds) 1.5m/s 1.5m/s

Weight range of sorted goods

minimum5g, Max15kg minimum5g, Max15kg
Trolley spacing 500 600
Belt surface dimensions of trolley (mm) 373×700 434×700
Trolley sorting drive (optional) Electric roller or servomotor Electric roller or servomotor
Trolley sorting power pick Sliding touch (carbon brush) or no contact high frequency induction Sliding touch (carbon brush) or no contact high frequency induction
Car loop drive Linear motor (electromagnetic drive) Linear motor (electromagnetic drive)
The sorting loop runs electricity DC48volt DC48volt
Sorting system noise level ≤70decibel ≤70decibel
