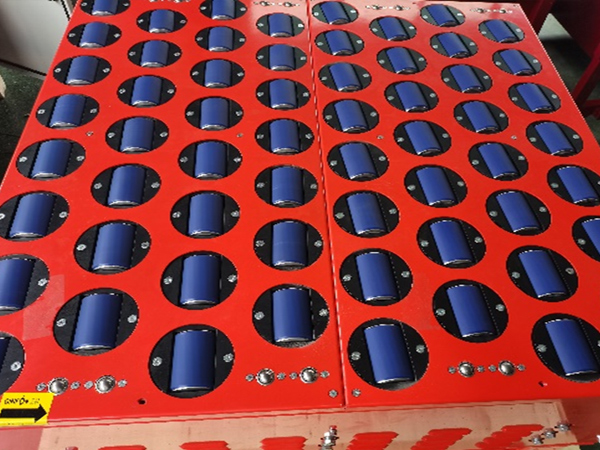

Electric roller-Diverter Wheel Sorter is composed ofthree parts: the electric roller assembly, the swing mechanism, and the frameassembly. It is mainly used in the upper layer of the matrix in the expressindustry, sorting ports, and shunting ports. With its advantages of highautomation, high sorting efficiency, wide range of goods sorting, and simpleoperation, it is widely used in the logistics industry.
Shape of sorted items:Cartons, turnover boxes, file bags, express flat parts, etc.
Size (mm) | L1060mm ×W1060×H600 | Maximum sorting capacity (pieces/Hour) | 5000PPH(Note: Goods400mm×400mm) |
Operating speed (m/Seconds) | 1.5m/s-2.5m/s(adjustable) | Weight range of parcel to be sorted(kg) | ≤60kg |
Size range of parcel to be sorted (mm) |
minimum 200L×200W×20H maximum 1200L×1000W×800H |
Sorting Angle | MAX:±60° |
Sorting accuracy | ≥99% | System noise level | ≤72dB |
Power supply |
Three phase five wire system380V±10%.50Hz±1Hz single-phaseAC220V±22V |
System working environment | Normal venue:-10℃- 45℃ |
The Smartand EfficientSorting Projectmade by GINFON forSTOShanghai Smart Logistics Parkwas honored with the "Outstanding Case Award for Distribution Centers" due to GINFON’ score features of low carbon and energy-saving, high sorting efficiency, high intelligence level, and low human involvement.
